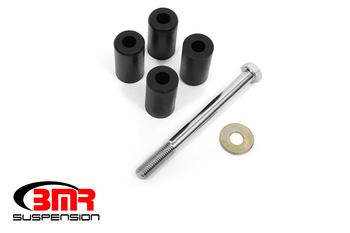

Rear Cradle Centring Sleeve Bushing Kit
for Ford Mustang 2015-23

Manufactured by BMR Suspension | Part #SCB766

Help minimise wheel hop and reduce rear cradle movement in your S550 Mustang with a rear cradle bushing kit from BMR Suspension.

They're manufactured from low-deflection polyurethane for maximum strength and durability. Install a set of these, and the results are better handling and more consistent launches without significantly increasing noise, vibration, or harmonics.


  • 100% bolt-on design.
  • Easy to install.
  • No cutting or welding/fabrication skills necessary.
  • Uses the factory hardware.
  • Made from High Durometer Polyurethane.
  • No permanent modifications.
  • Designed and built in the USA.

The SCB766 are sleeves used to centre the rear subframe. From factory the subframe bolts are a much smaller diameter to the subframe mounting holes. If not perfectly centred from factory, or after dropping the subframe to replace / install new parts, the rear subframe can become off centred. This means you could have one wheel on one side of the car, closer to the arch, while the other side is further away. These inserts fill that void and allow the subframe to be perfectly centred.


Included is a large M14 bolt and washer, this can be used to help start the sleeves if you cannot press them in place by hand, once they have been started, remove the bolt and insert the sleeve the rest of the way.

Components were designed to be installed without removing the Cradle from the vehicle, although they can be installed if the cradle has been completely removed from the car, by simply dropping the sleeves in from the top side of the Bushings.

Vehicle Application(s):

  • Ford Mustang S550 - 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
