Eibach Pro-Kit Lowering Springs for Mustang 2015-23 5.0L GT | #35145.140A

THE FIRST STEP IN SUSPENSION PERFORMANCE
Eibach Pro-Kit is the perfect answer for most frequently-driven street cars. It's our legendary spring system that dramatically improves both a vehicle's performance and appearance.

Pro-Kit lowers your Mustang's centre of gravity reducing squat during acceleration body roll in corners and excessive nose-dive under braking. When combined with Plus-1 or Plus-2 wheels and tires the Eibach Pro-Kit is the finishing touch to a winning recipe for performance. Pro-Kit also reduces excessive fender-well clearance making your car look just as hot as it performs.

Every Eibach Pro-Kit is designed and tested by our suspension engineers and performance driving professionals to deliver aggressive good looks and high performance handling without ever compromising safety or ride quality. By using our proprietary progressive spring design Pro-Kit provides the ultimate balance to take your passion for driving to a whole new level.

PRO-KIT - 2015-23 FORD MUSTANG GT

DOES NOT FIT MUSTANGS EQUIPPED WITH MAGNERIDE

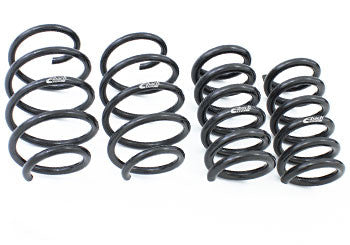

Pro-Kit #35145.140A

High Performance Handling and Aggressive Good Looks
Lower Centre of Gravity — Lowers Mustang 1.1" Front and 1.0" Rear (25-30mm Front, 25mm rear)
Stop Quicker Corner Faster and get Better MPG
Excellent Ride Quality
Million Mile Warranty
PRO-KIT—2015-UP FORD MUSTANG GT DATA:
TECHNICAL INFORMATION

FRONT:

OE rate: 28 N/mm (160 lbs/in)
PRO-KIT progressive rate: 35 - 55 N/mm (200 - 314 lbs/in)
Bump-stop: New Eibach Bump Stop
Damper: OE
Tubing: N/A
OE wheel center to fender: 397 mm (15.6 in)
PRO-KIT wheel center to fender: 370 mm (14.5 in)
PRO-KIT can be aligned to OE Specs: Yes

Front Alignment:

OE Camber = -0.8 deg (+/-0.8 deg)
OE Caster = 7.2 deg (+/-0.8 deg)
OE Toe = 0.0 deg (+/-0.2 deg)
PRO-KIT Camber = -1.0 deg
PRO-KIT Caster = 7.5 deg
PRO-KIT Toe = 0.2 deg

Approximate installation time: 2 hrs

PRO-KIT - 2015-UP FORD MUSTANG GT Before Stock

REAR:

OE rate: 117 N/mm (668 lbs/in)
PRO-KIT progressive rate: 140 - 160 N/mm (800 - 914 lbs/in)
Damper: OE
Bump-stop: New Eibach Bump Stop
Tubing: N/A
OE wheel centre to fender: 385 mm (15.1 in)
PRO-KIT wheel centre to fender: 360 mm (14.2 in)
PRO-KIT can be aligned to OE specs: Yes

Note: PRO-KIT spring rates are measured as a system of the front or rear suspension. 10mm of bump-stop deflection is included in the final rate of the system.

Rear Alignment:

OE Camber = -1.2 (+/-0.8 deg)
OE Toe = 0.1 deg. (+/-0.2 deg)
PRO-KIT Camber = -1.4 deg
PRO-KIT Toe = 0.2 deg
Approximate installation time: 2 hrs
