ROUSH Supercharger (Phase 2) for F-150 5.0L V8 2011-14 | #421435

Roush

£6,778.51 £7,974.72
SKU: RO-421435
Available for pre-order

Supercharger Kit (Phase 2)
for Ford F-150 5.0L V8 2011-14
Manufactured by ROUSH® Performance #421435


ROUSH® Performance Logo

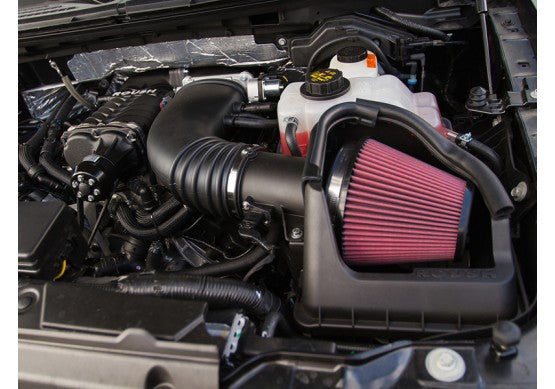

This F-150 Supercharger Kit by ROUSH® delivers 570 HP and 530 LB/FT of torque to the 2011-2014 Ford F-150 5.0L-4v V8 powertrain!

The ROUSH 2011-2014 5.0L F-150 Phase 2 Calibrated Supercharger Kit is part of the TVS (Twin Vortices Series) line of superchargers developed by ROUSH that have raised the bar for performance and reliability. This is the same line that has been used and proven for years in ROUSH-built vehicles.

Product highlights for the 2011-2014 5.0L Ford F-150 Supercharger ROUSH R2300 Phase 2 Kit - 570 HP:

  • Produces 570 horsepower and 530 lb-ft of torque (210hp and 150lb-ft gain over stock)
  • R2300 Supercharger featuring Eaton's new TVS Technology. The new Twin Vortices Series features four-lobe rotors with high-flow inlet and outlet ports that greatly enhance thermal efficiency, enabling greater volumetric capacity at higher revolutions per minute (RPM)
  • Fuel charging assembly with ROUSH designed upper and lower aluminum intake manifolds
  • High efficiency intercooler system featuring dual-core low temp radiator, degas bottle, high capacity air-to-water intercooler and formed hoses with abrasion-resistant sleeves
  • Twin 60mm throttle body and throttle body spacer
  • ROUSH cold air induction system featuring an injection-molded air box, blow-molded clean air tube and high flow, washable, premium air filter
  • 100mm MAF (Mass Air Flow) tube/housing
  • 1st sheave FEAD system with heavy duty tensioner for increased durability and less parasitic loss
  • 80mm pulley
  • To be downloaded using the ROUSH Diagnostic Tool (RDT) software.
  • 2011-2013 Ford F-150 5.0L-4v engine
  • Check local noise ordinances for legality

The ROUSH R2300 supercharger features Eaton's new cutting edge Twin Vortices Series technology (TVS) rotating assembly that delivers more power and better fuel economy in a smaller package for uncompromising performance.

The ROUSH R2300 TVS supercharger is a roots-type, positive displacement supercharger that features twin four-lobe rotors that are twisted 160-degrees.

By comparison, the original Eaton supercharger rotating assembly featured three lobes twisted 60 degrees. The fourth lobe and added twist, when combined with NEWLY redesigned air inlet and outlet ports, greatly enhance thermal efficiency, deliver higher volumetric capacity, enable higher operating speeds, creates a smoother, more efficient flow of air into the engine and has improved noise and vibration characteristics.

Unlike turbo-charging and centrifugal superchargers, the ROUSH R2300 TVS supercharger provides instant throttle response and can generate increased power through the engine's entire powerband.

The supercharger design runs on the first-sheave FEAD allowing ROUSH to integrate a heavy duty tensioner designed to handle the increased load of the R2300 supercharger and applying the load closer to the #1 main bearing, thus increasing durability.

            Vehicle Application

            Model Engine Years
            F-150  5.0L 2011-14
            2014 Model Year Requires supplemental FEAD #421821 to be purchased for installation.



            Installation

            Difficulty Advanced
            Time 14 hours
            Tools Garage tools
            Instructional URL Download Instruction Manual
